MULTI-ROW DRILLING MACHINES

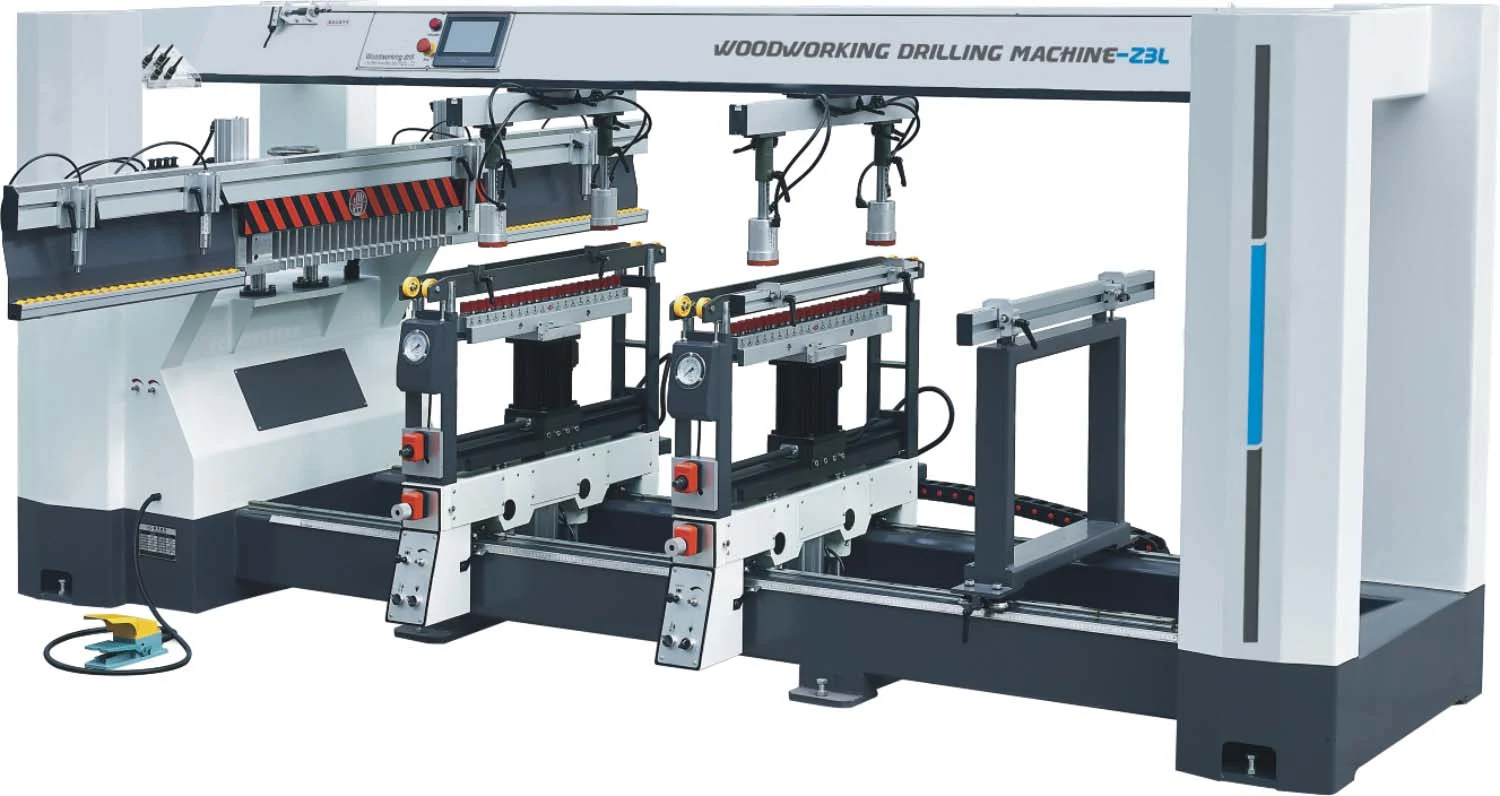

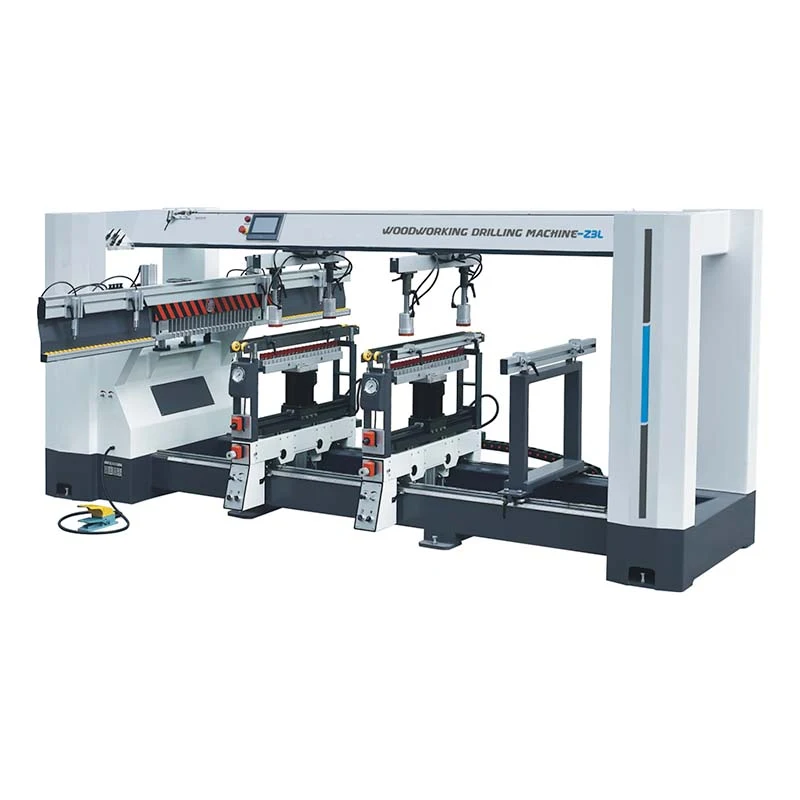

Z3L
Three Rows Drilling Machine
Multi-row drilling equipment with a choice of row configurations for furniture panel production.
Drilling depthMax.:60mm
Motor power4.5KW
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for Z3L Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications Z3L
| Max.Drilling Diameter | Max.: 35mm(Single Bit)Max.:13mm(Multiple Bit) |
|---|---|
| Max.Drilling Depth | Max.:60mm |
| Drill Assembing Hole Diameter | 10mm |
| Max.Machining Hole Distance | 2500 x 640mm |
| Total Motor Power | 4.5KW |
| Spindle Speed | 2840rpm |
| Total Number of Rotating Shafts | 21 x3 = 63pcs |
| Overall Dimension | 3750 x 2500 x 1600mm |
| Packing Size | 3850 x 1300 x 1620mm |
| Weight | 1500kgs |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
EXPLORE YOUR OPTIONS
All multi-row drilling machines More ways to move forward.
FURNITURE PANEL DRILLING

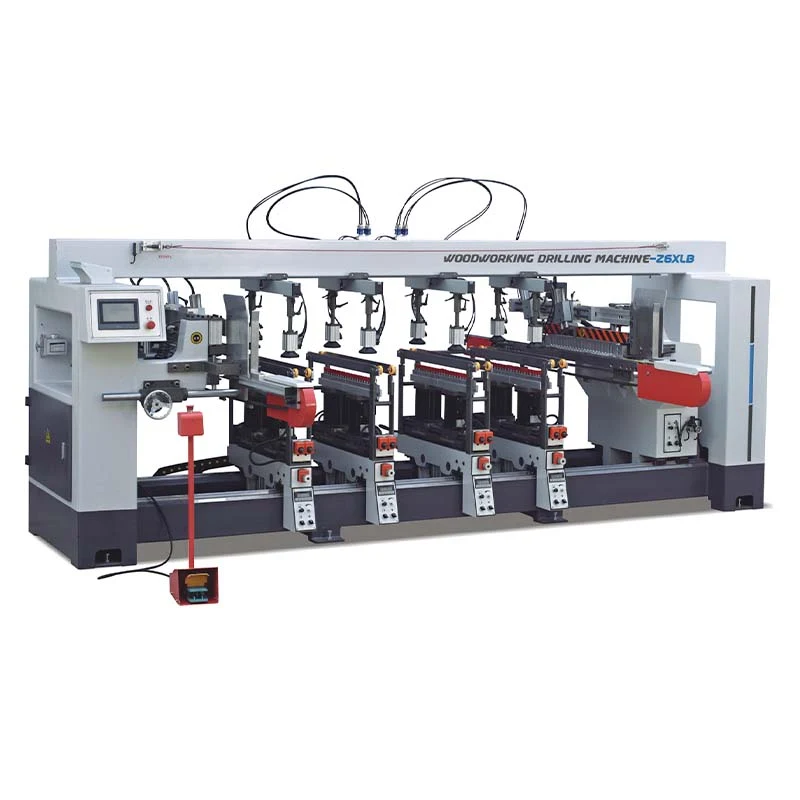

Z6XLB
Automatic Six Rows Drilling Machine
Drilling depthMax.:60mm
Motor power16KW
FURNITURE PANEL DRILLING
Z5XLB
Automatic Five Rows Drilling Machine
Drilling depthMax.:60mm
Motor power13KW
FURNITURE PANEL DRILLING

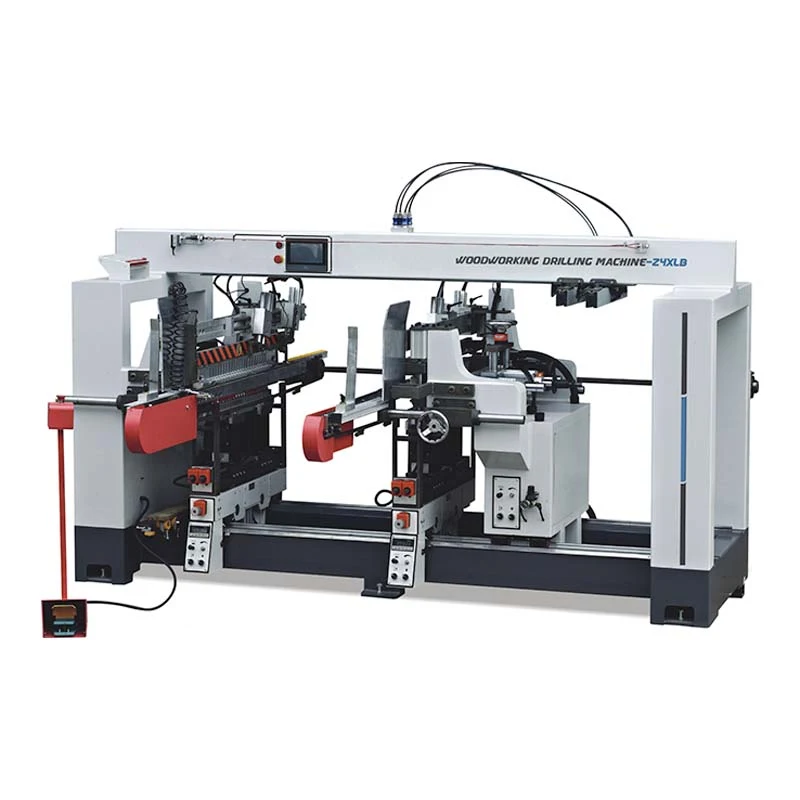

Z4XLB
