SAW BLADE GRINDING
NC668

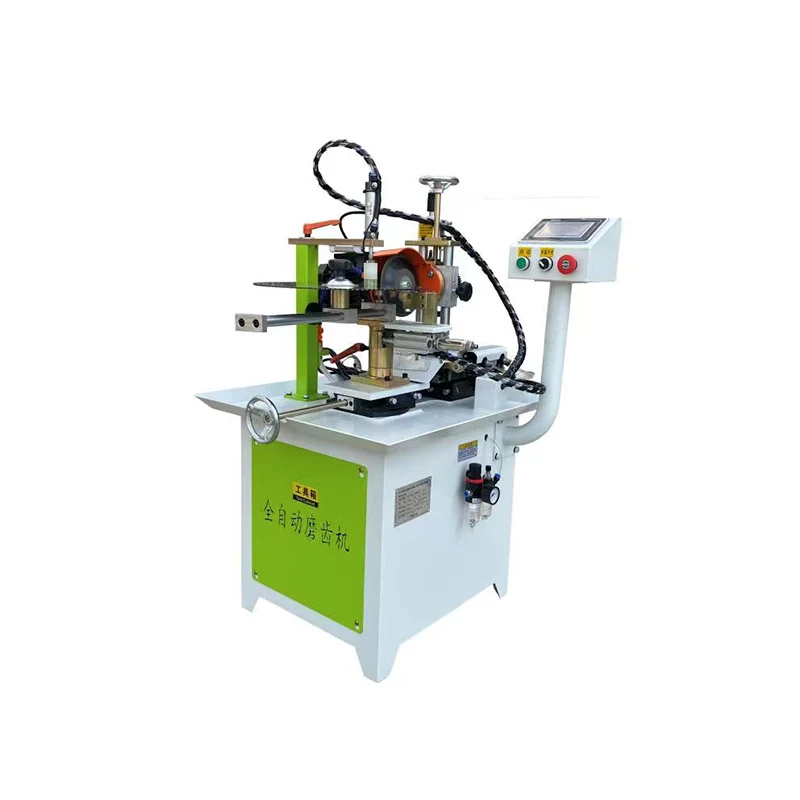

Saw Blade Gear Grinding Machine

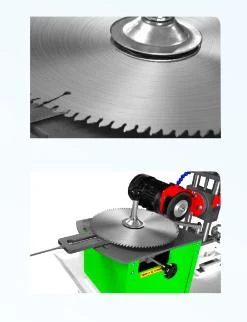

Saw blade gear grinding for blade diameters from 100 to 800 mm, with adjustable pitch and grinding speed.
Saw Blade Specification(mm)Max.: 800; Min.: 100
Pitch(mm)0-40
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for NC668 Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications NC668
| Saw Blade Specification(mm) | Max.: 800; Min.: 100 |
|---|---|
| Pitch(mm) | 0-40 |
| Gear Grinding Speed (Tooth/min) | 0-25teeth |
| Grinding Wheel Speed(r/min) | 2800 |
| Alloy Grinding Wheel Specification(mm) | 150 x 32 x 10 |
| Grinding Wheel Motor Power(kw) | 0.55 |
| Overall dimensions(mm) | 750 X 700 X 1200 |
| Weight(kg) | 1600 |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
