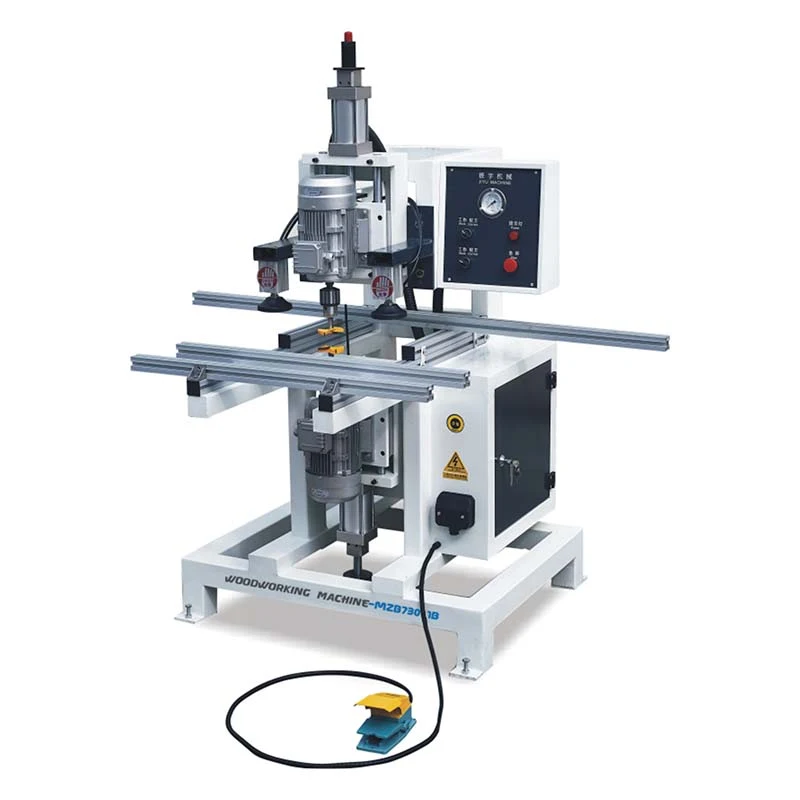

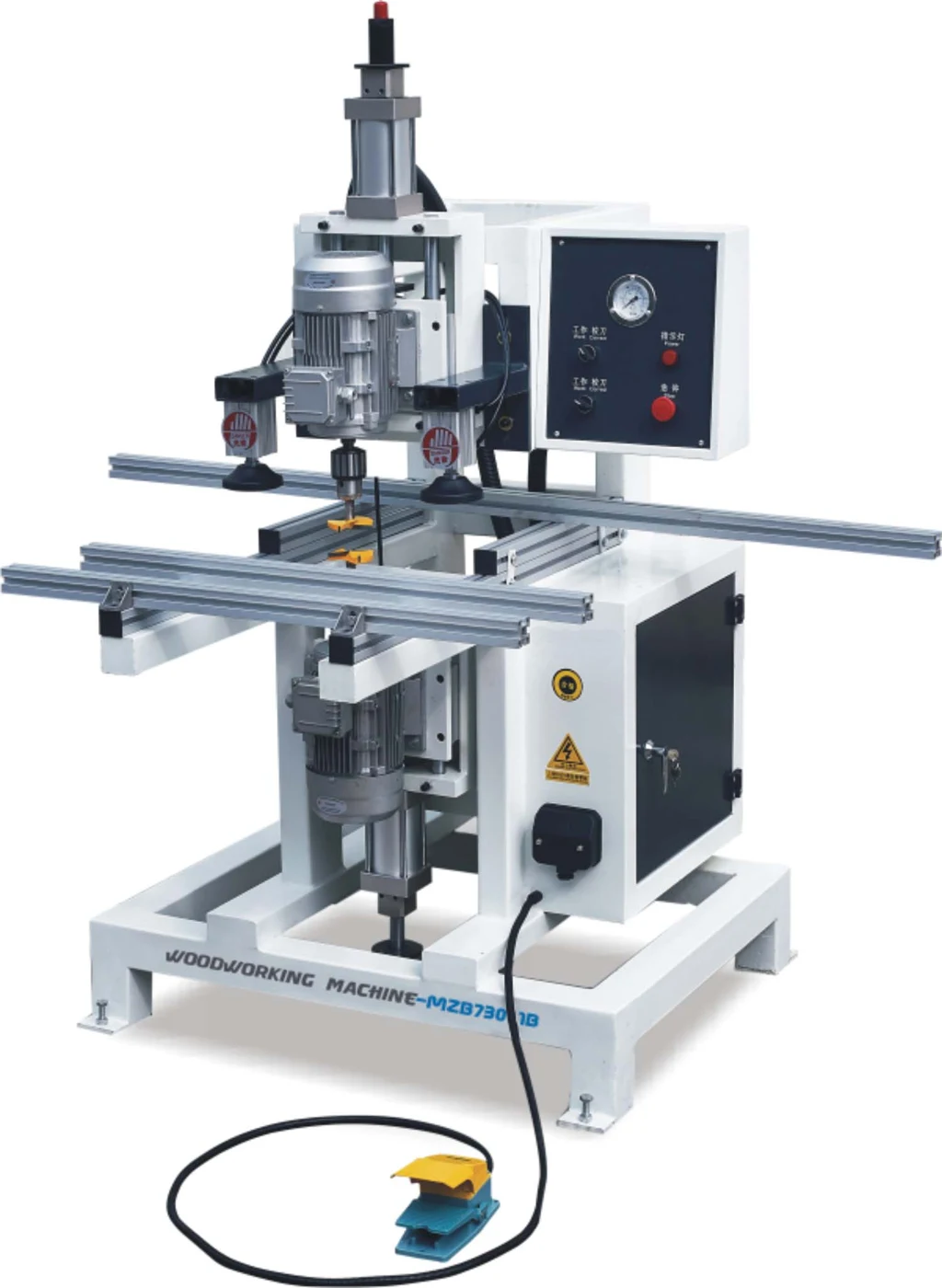

HINGE DRILLING MACHINES
MZB73031B
Upper and Lower Concentric Drill
Dedicated hinge drilling with single-head and multiple-head configurations.
Drilling depthMax.:100mm
Motor power1.5 kwx 2 / 2.2kw x 2 / 3kw x 2
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for MZB73031B Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications MZB73031B
| Max.Drilling Diameter | Max.: 60mm |
|---|---|
| Max.Drilling Depth | Max.:100mm |
| Drill Assembing Hole Diameter | 10mm |
| Max.Machining Hole Distance | 600mm |
| Total Motor Power | 1.5 kwx 2 / 2.2kw x 2 / 3kw x 2 |
| Spindle Speed | 2840rpm |
| Total Number of Rotating Shafts | 1 x2 = 2pcs |
| Overall Dimension | 1800 x 1200 x 1850mm |
| Packing Size | 1850 x 1250 x 1900mm |
| Weight | 150kgs |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
