MULTIPLE BLADE SAWS

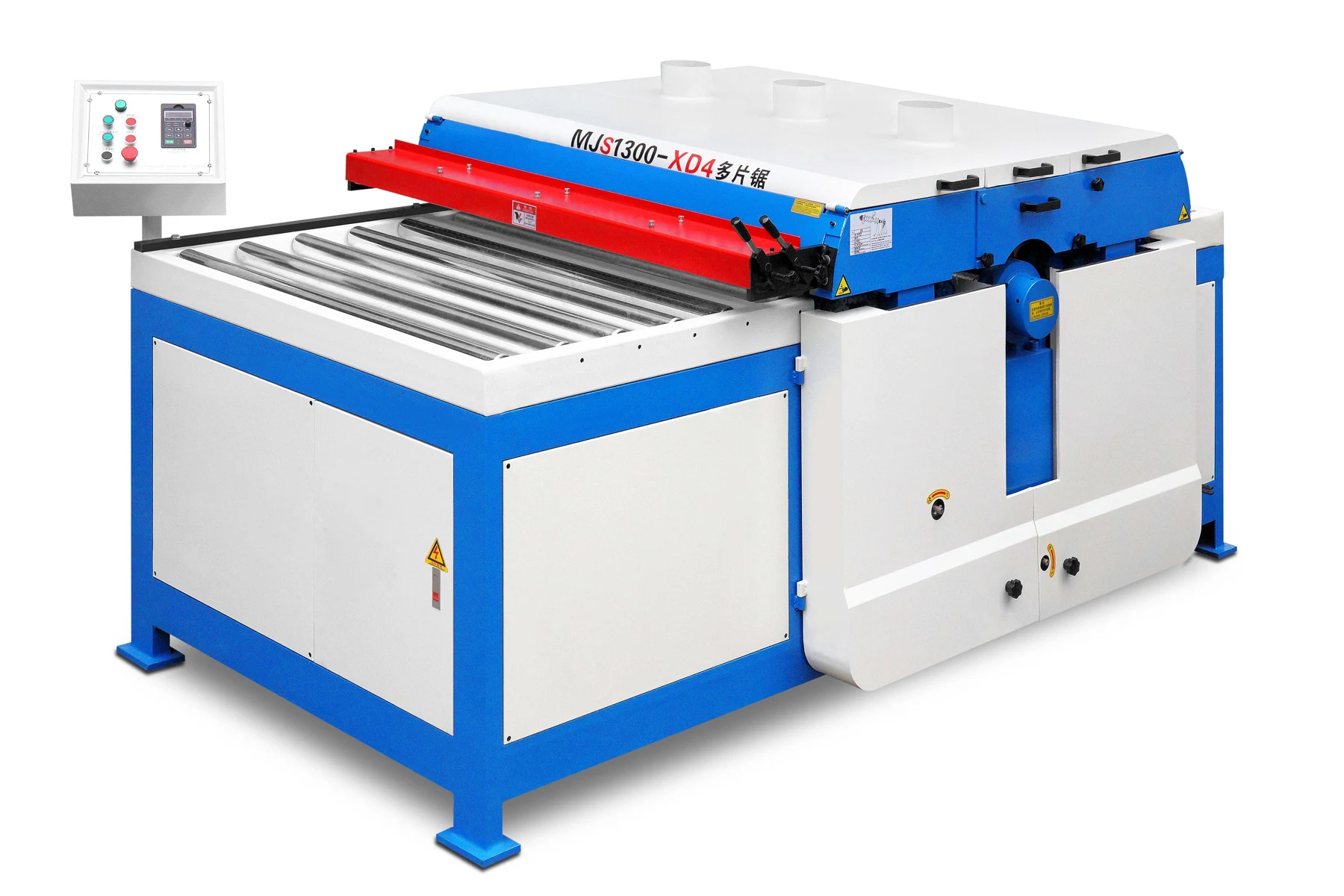

MJS1300-XD4
Multiple Blade Saw
Purpose-built for cutting and grooving panels, with a choice of processing widths, spindle configurations and motor power.
Panel widthMax.: 1220; Min.: 200
Feed speed0-12
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for MJS1300-XD4 Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications MJS1300-XD4
| Width of the Processing Panel(mm) | Max.: 1220; Min.: 200 |
|---|---|
| Thickness of the Processing Panel(mm) | Max.: 60; Min.:5 |
| Min.Length of the Processing Panel(mm) | 600 |
| Spindle Diameter(mm) | 90 |
| Spindle Speed (r/min) | 2600 |
| Saw Blade Diameter(mm) | 270 |
| Spindle Motor Power(kw) | 37or 45 |
| Feeding Motor Power(kw) | 3 |
| Feeding Speed(m/min) | 0-12 |
| Quantity of the Feeding Roller(pcs) | 16 |
| Overall Dimension(mm) | 3100 x 1850 x 1500 |
| Weight(kg) | 2300 |
Application & machine details

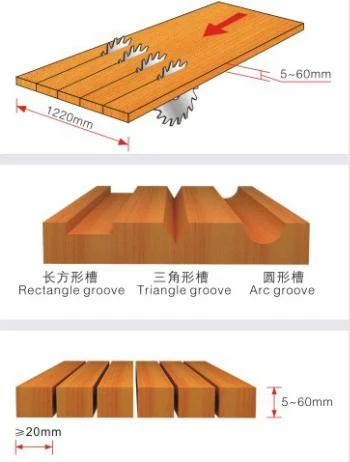

Cutting of the large boards such as density boards, composite boards, solid wood boards,MDF panel, plywood, melamine board，Cement fiber board and so on.
And also can make the grooving with different depths on the board surface.
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
