OMAC / JY-568JK
01 / 03
AUTOMATIC EDGE BANDERS

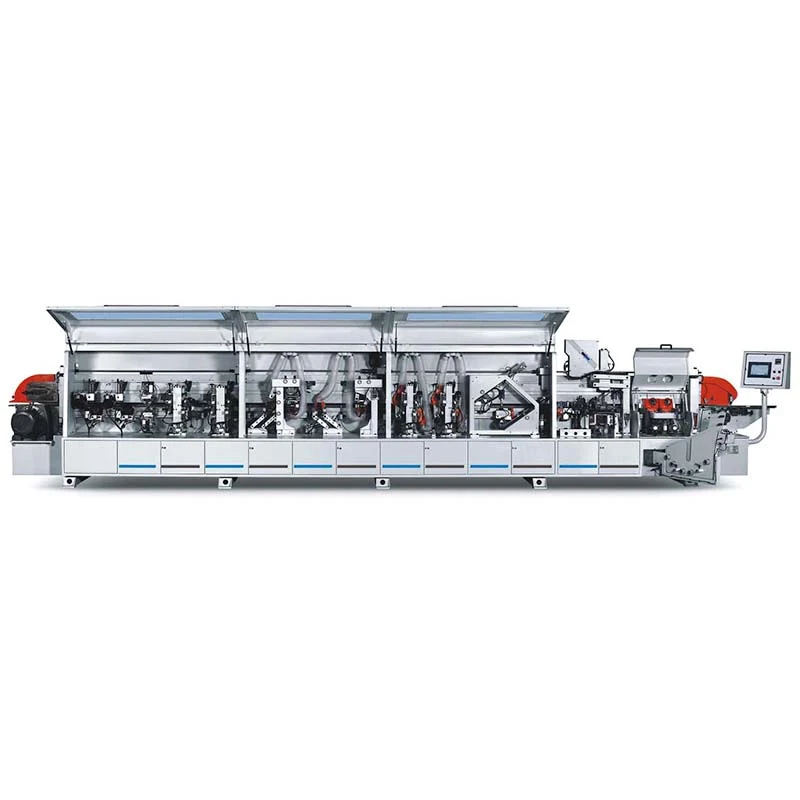

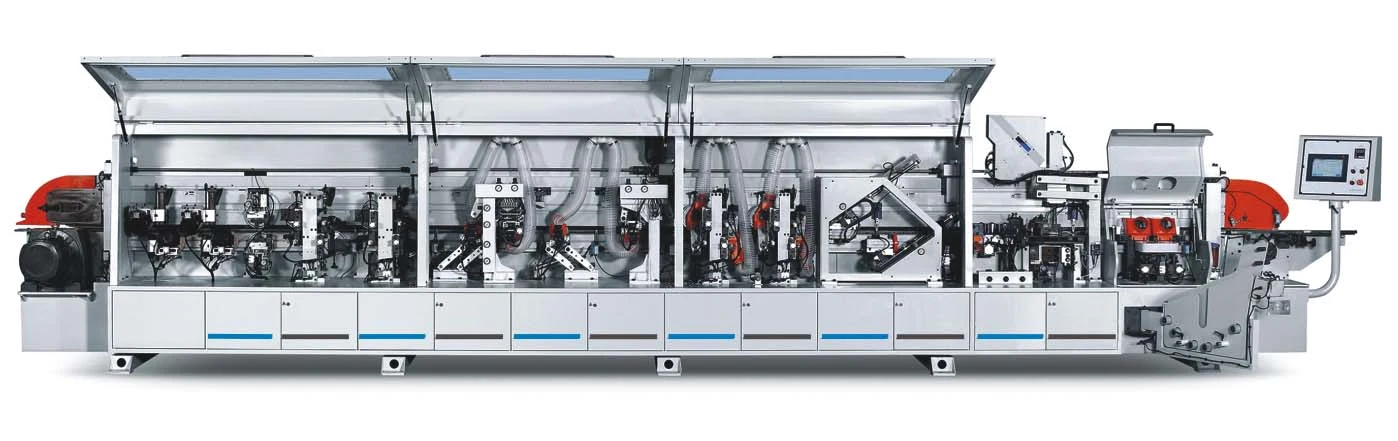

JY-568JK
Automatic Edge Banding Machine
Automatic edge banding for panel furniture, supporting 0.4–3 mm edge banding and 10–60 mm panels.
Feed speed20-23-26m/min
Panel thickness10-60mm
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for JY-568JK Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications JY-568JK
| Total Power | 25KW |
|---|---|
| Feeding Speed | 20-23-26m/min |
| Edge Banding Thickness | 0.4-3mm |
| Panel Thickness | 10-60mm |
| Panel Length without Pre-milling | ≥120mm |
| Panel Length with Pre-milling | ≥250mm |
| Panel Width | ≥80mm |
| Working Pressure | 0.6Mpa |
| Overall Dimension | 8800 x870 x 1700mm |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
