CNC SIDE HOLE DRILLS
CS-550-2

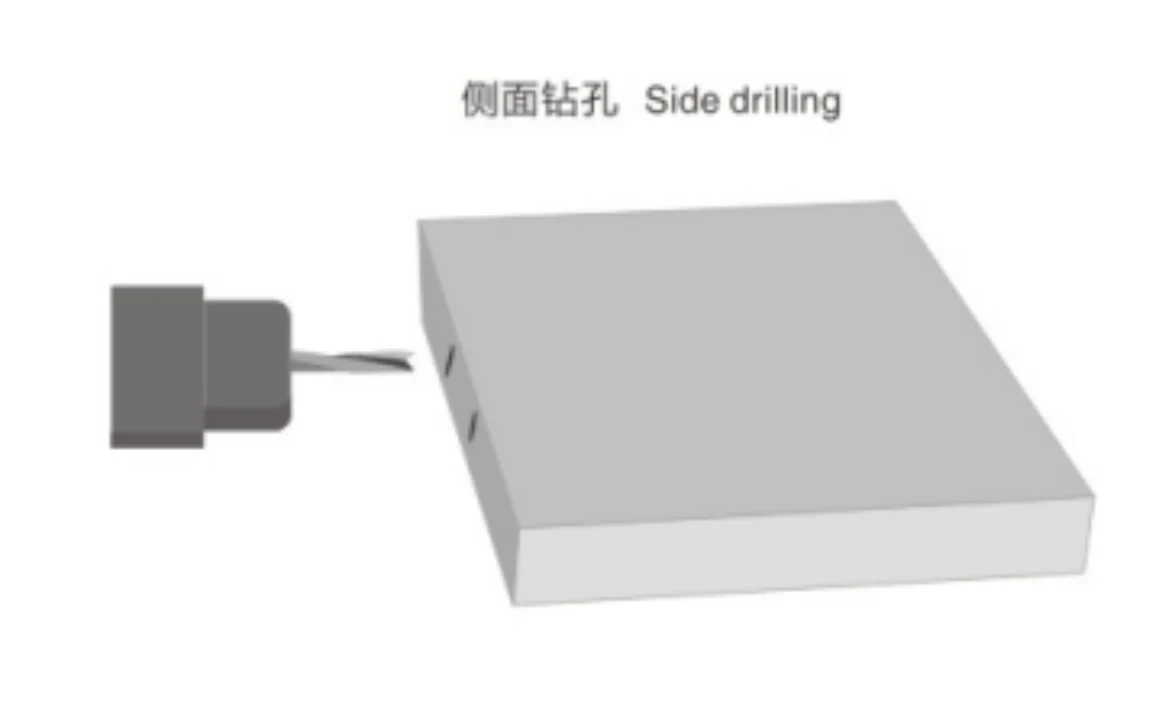

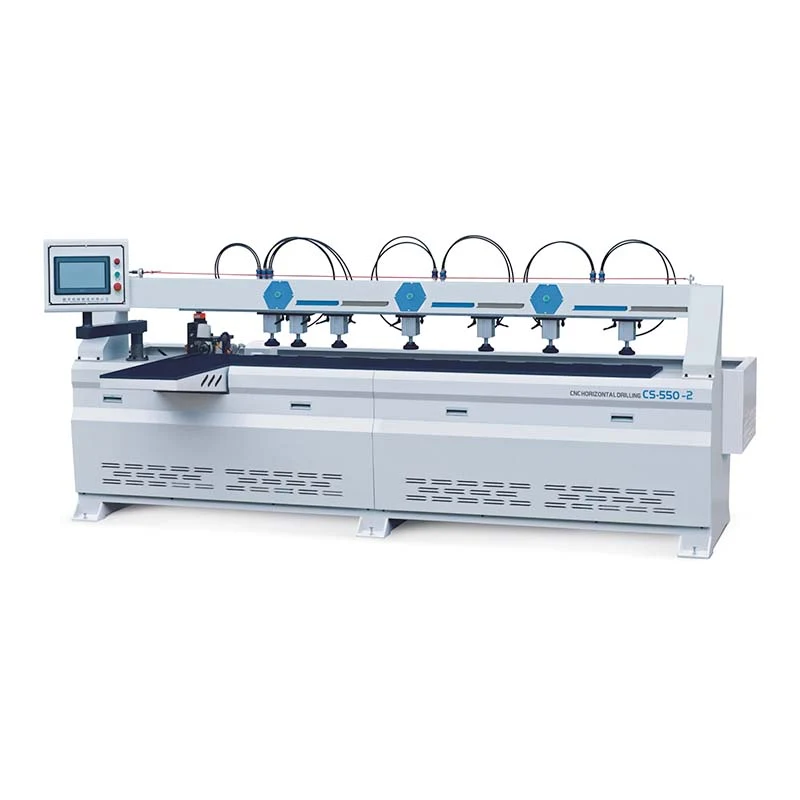

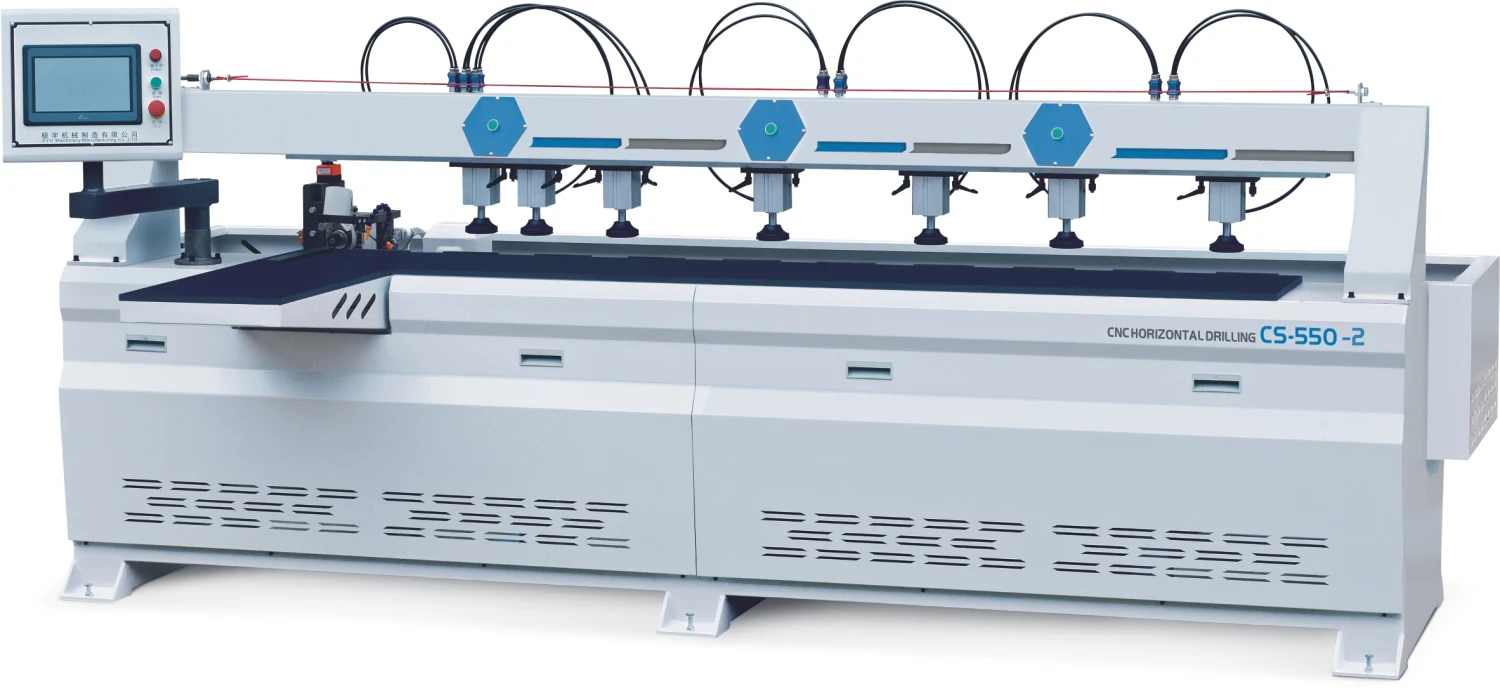

CNC Side Hole Drilling Machine(Double Spindles)
Servo-driven CNC side hole drilling with a PLC controlling system and G-code instructions.
Working Stroke2800 x 30
Table StructureHigh Strength PVC Table
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for CS-550-2 Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications CS-550-2
| Working Stroke | 2800 x 30 |
|---|---|
| Table Structure | High Strength PVC Table |
| Max.Empty Line Speed | 80000mm/min |
| Max.Drilling Speed | 80000mm/min |
| Spindle Power | 3.5 x 2 + 1.1KW |
| Spindle Speed | 18000rpm |
| Motor | Servo Motor |
| Running Instruction | G Code |
| Operating System | PLC Controlling System |
| Processing Precision | ±0.05/300mm |
| Overall Dimension | 3350 x 1150 x 1430mm |
| Weight | 1150kgs |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
