CNC CUTTING MACHINES
CH1-12

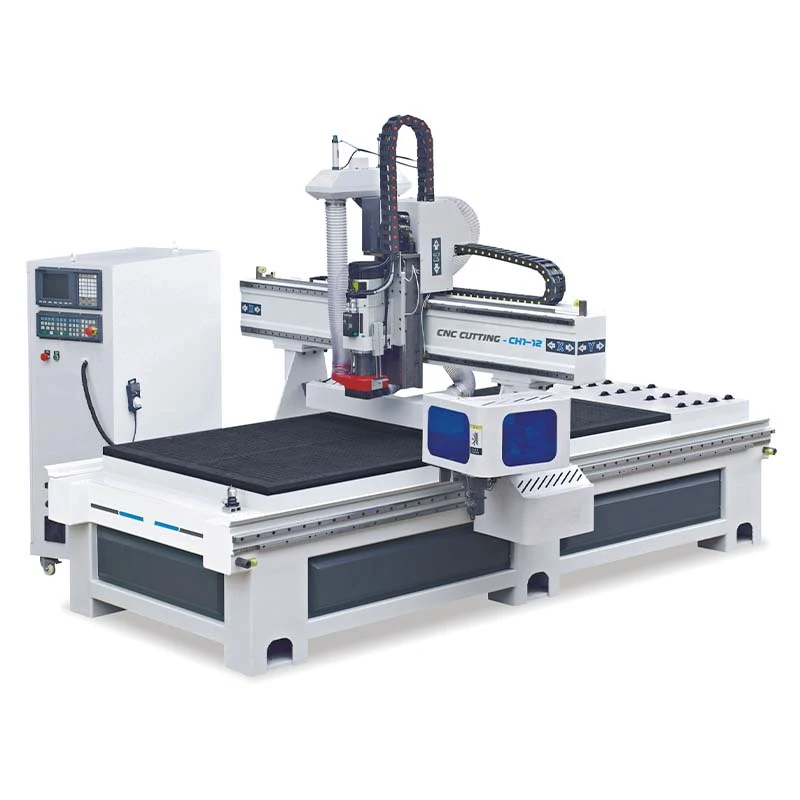

CNC Cutting Machine (With Knife Tray)
Servo-driven CNC panel processing with a 1300 × 2500 × 200 mm working range and ±0.1 mm processing precision.
Working range1300 x 2500 x 200mm
Precision±0.1mm
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for CH1-12 Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications CH1-12
| Processing Range | 1300 x 2500 x 200mm |
|---|---|
| Max.Processing Size | 2440 x 1220 x 50mm |
| Transmission Form | X/Y Rack; Z Screw |
| Table Structure | Partition Adsorption |
| Spindle Power | 9kw |
| Spindle Speed | 18000 / 24000r/min |
| Fast Moving Speed | 80m/min |
| Tool magazine capacity | 8/10/12/16 |
| Max.Processing Speed | 25m/min |
| Drill speed | 2800rpm |
| Processing precision | ±0.1mm |
| Driving System | Servo System |
| Overall dimensions(mm) | 3700 x 2350 x 2200mm |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
